Features:

• Standard version Features


• Media enhancement by M-Pleating, increases Dust Holding Capacity (D.H.C) and reduces pressure drop


• The zigzag pleating pattern provides more filtration area allowing more dust holding capacity (DHC)


• Additional filtration area gives the oil more room to flow, resulting in lower pressure drop


• The media is resin-impregnated to ensure structural integrity during its operation under pressure and temperature spikes

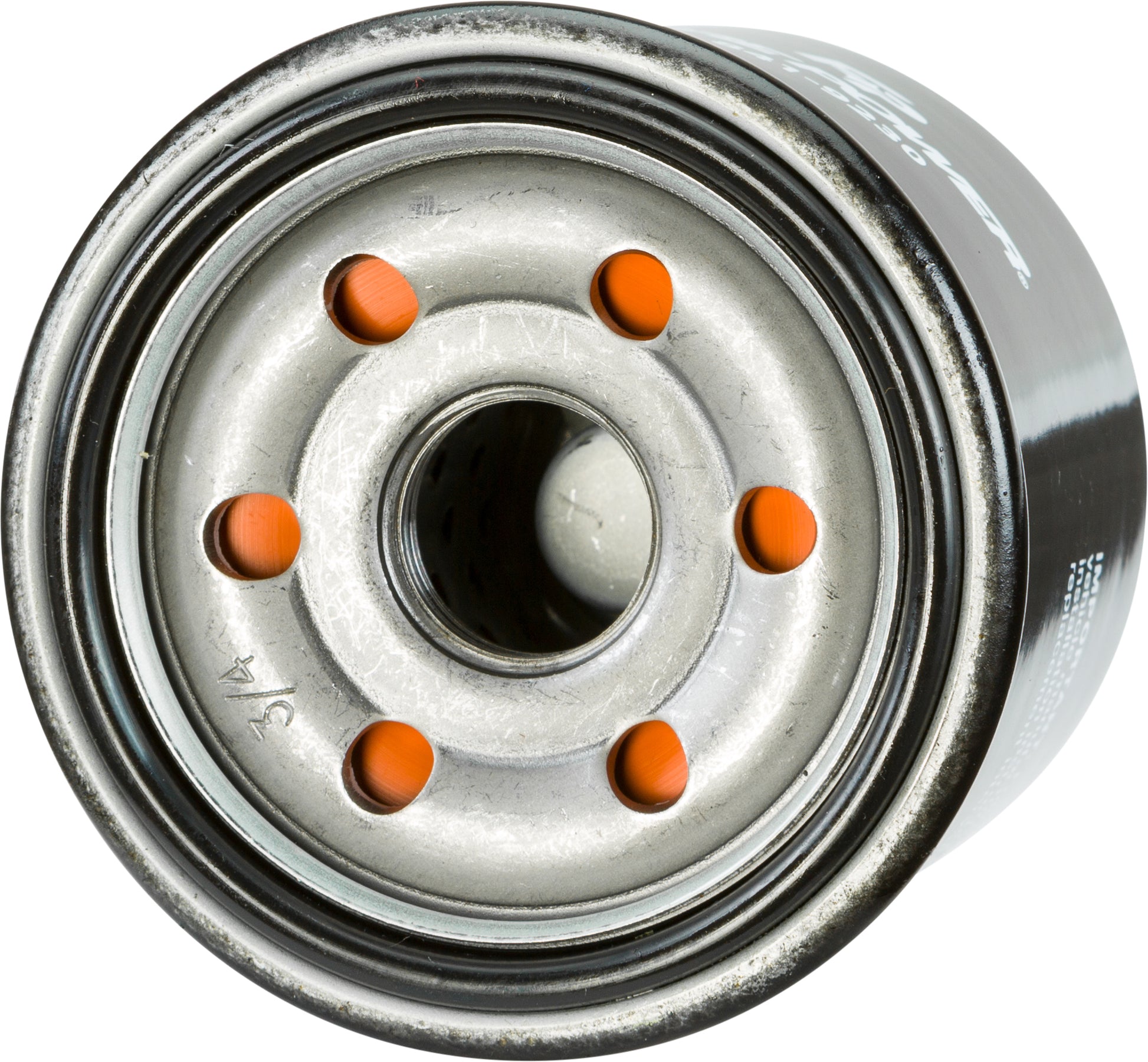

• Forming tapped thread for easy installation and spin-on


• Pre-lubricated gasket


• The gasket is lubed from the factory to aid installation


• The base plate is covered with shrink film to ensure that the lube stays there until the time of usage and dust protection


• Performance version Features


• Standard features plus the following:


• Heat-resistant Anti-Drainback valve (ADBV)


• Unlike standard nitrile rubber, silicone rubber has a higher heat-resistance


• The enhanced ADBV will prevent dry starts and provides durability throughout the extended life of the filter

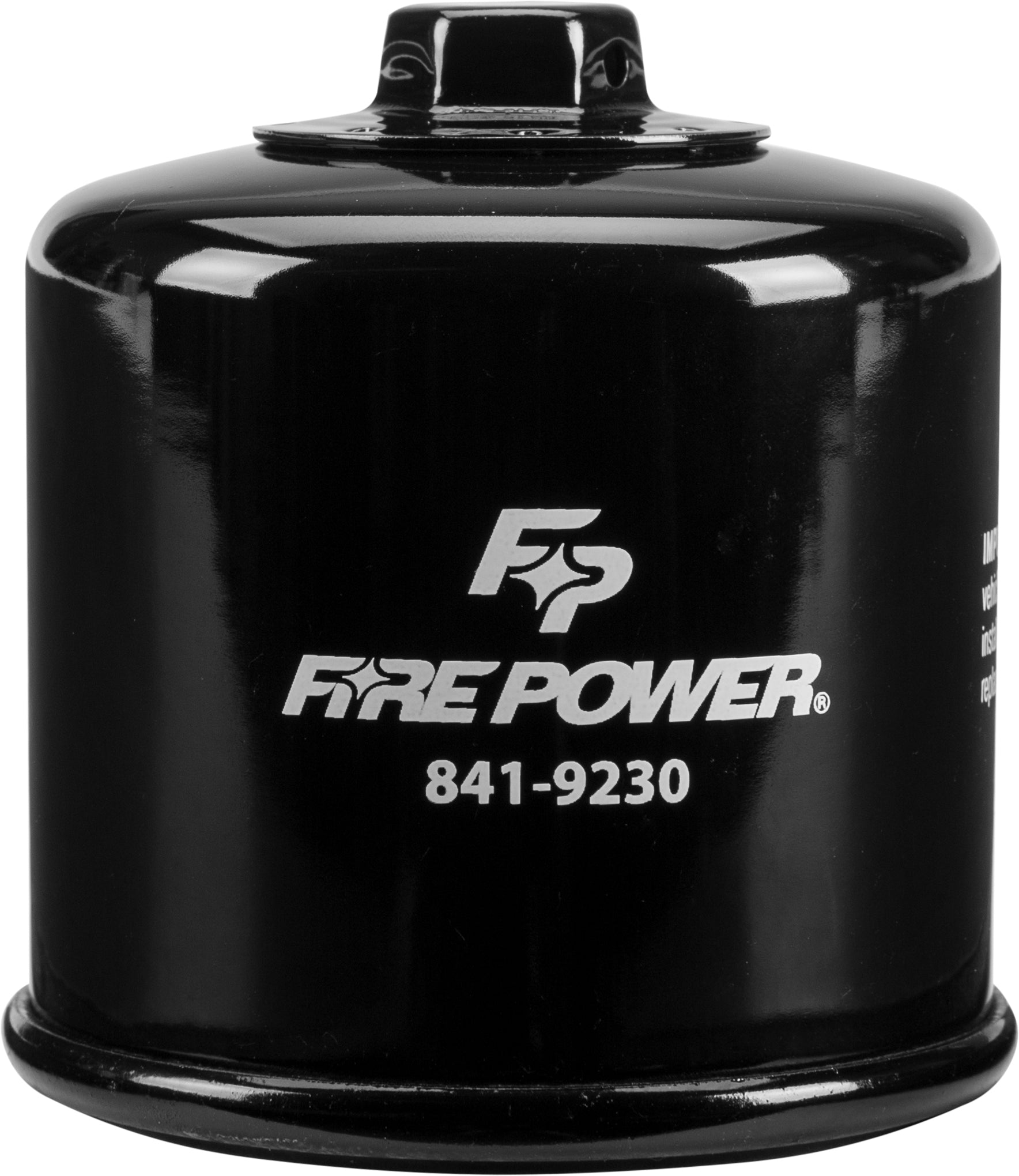

• 17mm Hex Nut


• Easy for service and removal after prolonged usage


• The nut is designed for safety wire attachment if needed


• **HARDDRIVE OIL FILTERS ARE "DECAL FREE" FOR CLEAN LOOK

Fitment:
Kawasaki KAF 620 Mule 2510 4X4 2000
Kawasaki KAF 620 Mule 3010 4X4 2001 to 2008
Kawasaki KAF 620 mule 3010 diesel 2003 to 2008
Kawasaki KAF 620 Mule 3010 Trans 4X4 2005 to 2008
Kawasaki KAF 620 Mule 4010 4X4 2009 to 2015
Kawasaki KAF 620 mule 4010 Diesel 2009 to 2013
Kawasaki KAF 620 Mule 4010 Trans 4X4 2009 to 2015
Kawasaki KAF 820 Mule Pro-Fx 2016 to 2018
Kawasaki KAF 820 Mule Pro-Fx EPS 2016 to 2018
Kawasaki KAF 820 Mule Pro-FXR 2018
Kawasaki KAF 820 Mule Pro-Fxt 2016 to 2018
Kawasaki KAF 820 Mule Pro-Fxt EPS 2015 to 2018
